Practical custom-part examples

Explore photographed fixtures, adapters and mounts. Each page explains what its evidence supports and the details to include when planning a similar custom part.

Photo-led examples describe the visible geometry. Documented completed projects also provide verified specifications and outcomes when those records and publication permissions are available.

Photographs and verified project evidence

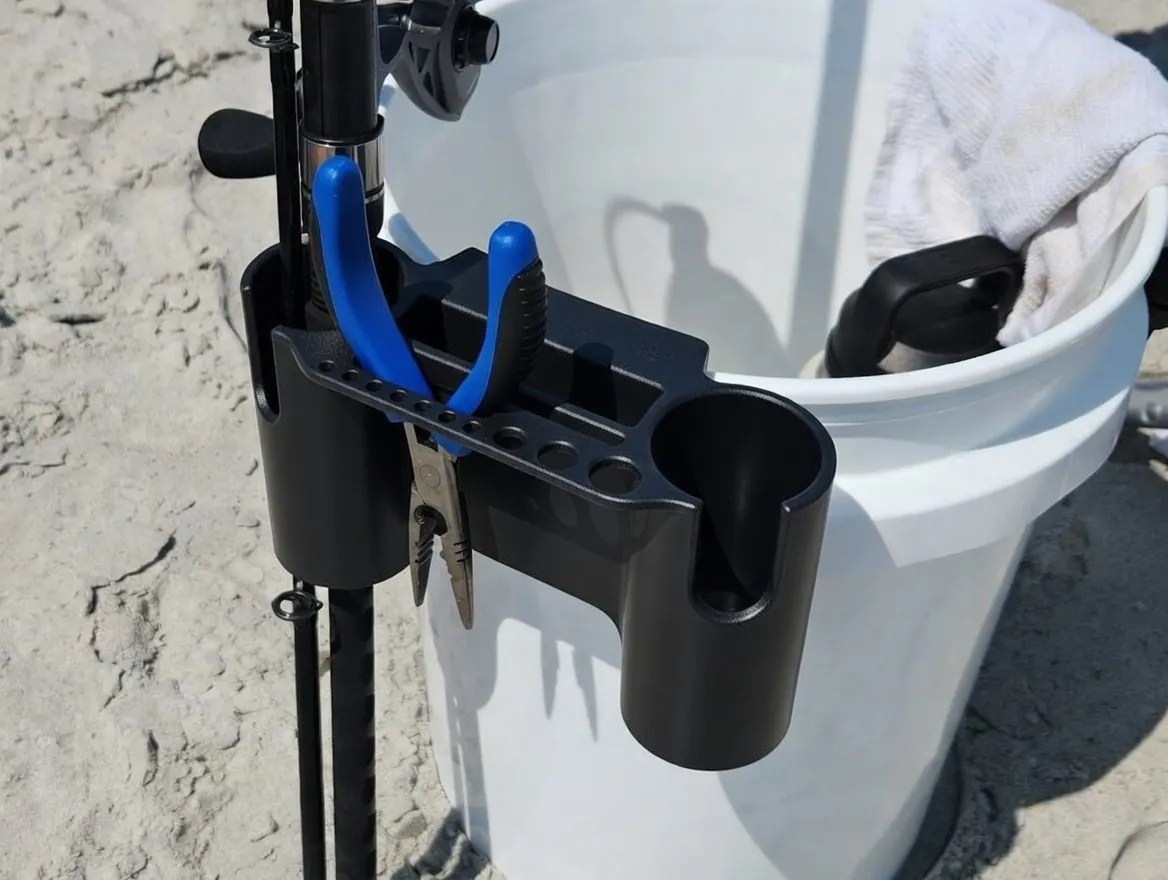

Part photograph A bucket-mounted tool and rod holder A black holder photographed on the side of a white bucket, with a rod and a hand tool in its openings. The part combines cylindrical holders and smaller tool positions. See the part example →

Part photograph A stepped hose-adapter geometry A black printed adapter with a stepped cylindrical profile, photographed with vacuum-hose packaging. It shows the kind of transition geometry a custom adapter can use. See the part example →

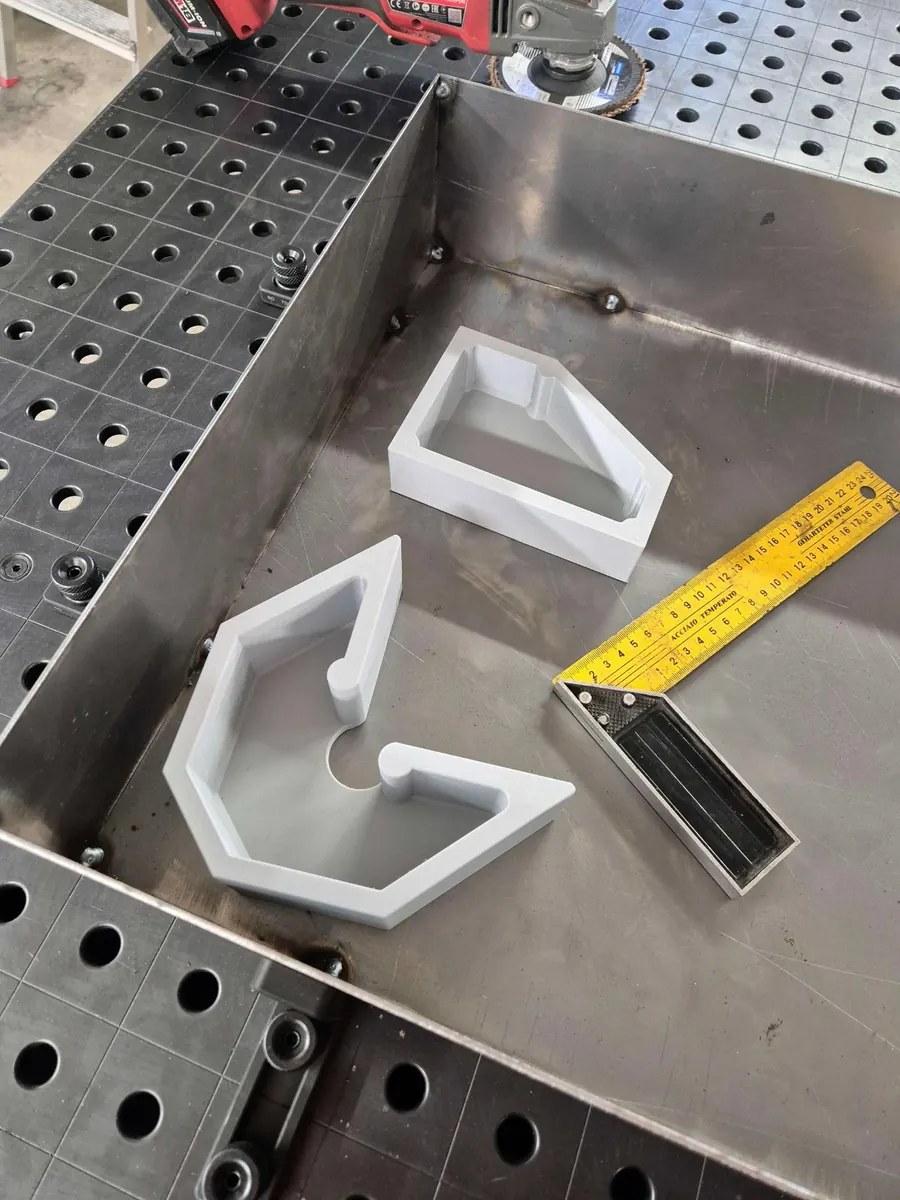

Part photograph Corner guides on a welding table White printed corner-guide shapes photographed on a perforated welding table. The image shows open centers, straight locating faces and a compact footprint. See the part example →

Plan your application

For brackets, adapters and fixtures, include mating dimensions, the intended load, heat or outdoor exposure and the quantity. An existing photograph can illustrate a shape; your own model and requirements determine your quote and material choice.

Read illustrative application planning scenarios or prepare a print-ready file.
